　　设备特点：

　　选取低电压、大电流、低电流密度的激磁方式，同时选取水内冷、双循环的冷却方式，使线圈工作温度低，从而提供不变的磁场，设备作业率高达98%以上；

　　优化磁系设计，磁介质最佳分列组合，布景场强可高达1.8T，能为矿物分选提供持续的高梯度磁场，矿石分选效能高；

　　转环立式旋转、反向冲刷磁性物，粗颗？笫挥么┕沤橹识驯憧沙逅⒊隼，磁介质不易梗塞；

　　选取矿浆脉动设计，矿物颗粒在流体力、脉动力、沉力等综合力场下能充分疏松分层，得到有效分；

　　矿石分选粒度宽，上限可达6mm、下限低至2~10μm；

　　占有17个系列70多种规格型号产品，单台设备金属矿处置量覆盖0.01~950 t/h；

　　建设线圈管路洗濯系统，便于线圈日常守护，线圈设计使用寿命可达20年以上；

　　利用领域：

　　赤铁矿、褐铁矿、菱铁矿、钛铁矿、铬铁矿、锰矿、黑钨矿、稀土矿、钽铌矿等弱磁性矿物的选矿；

　　长石、石英砂、高岭土、霞石、萤石、硅线石、锂辉石、沉晶石、红柱石、滑石、锆英石、膨润土、菱镁矿等非金属矿物的除铁提纯；

　　赤泥、冶炼钢渣、瓦斯灰、粉煤灰、炉渣等二次资源再选回收。

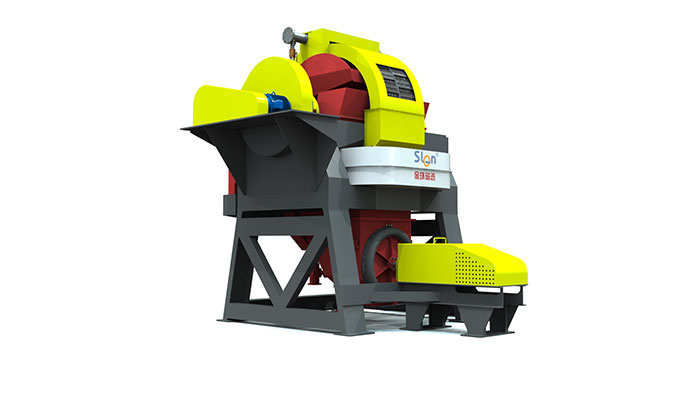

SLon High Gradient Magnetic Separator (HGMS for short)

Production Description

　　The high gradient magnetic separator is applied in mining process for weak magnetic minerals or deironing for non-metallic minerals.

　　Capacity: 0.01～950t/h

　　Rated magnetic background field: 0.4～1.8T

Scope of Application

　　1.Mining process for weak magnetic minerals, such as hematite, limonite, siderite, ilmenite, chromite, manganese ore, wolframite, rare earths mineral, tantalum-niobium ores and etc.;

　　2. Deironing for non-metallic minerals, such as feldspar, quartz sand, kaolin, nepheline, fluorite, sillimanite, spodumene, barite, andalusite, speckstone, zircon, bentonite, magnesite and etc.;

　　3. Recycle of secondary resources, such as red mud, smelting slags, gas ash, fly ash, slag and etc..

Advantages

　　1. High gradient magnetic field: the magnetic system with the optimized design and the background magnetic field could reach 1.8T to the maximum, which could improve the efficiency of separation;

　　2. Steady state magnetic field: Energizing mode with low voltage, high current, low current density; both the two types of cooling way in coexistence, including the internal cooling in the center of the copper tubing and dual cycle external cooling;

　　3. Non-clogging Matrix: vertical ring rotating, flushing concentrates in opposite direction, the coarse grain will wash off without blocking the matrix

　　4. The wide range of particle size: the maximum is up to 6mm, the minimum is lower to 2~10μm.

　　5. The pulsating mechanism design: loosen and layer the minerals grains, better for effective separation;

　　6. The capacity per single machine: covering from 0.01 ~ 950t/h;

　　7. The long lifespan for coils: 20 years or above;

　　8. Customized equipment as buyer's requirements: 17 series with over 70 models products, various equipment to meet buyer's demands for experimental or industrial production.
