　　设备特点：

　　选取怪异的聚磁介质
，精准捉拿磁性颗粒
，磁性矿物去除齐全；

　　磁场强度陆续可调
，最高可达1.8T；

　　选取PLC全自动节造
，磁介质免拆洗；

　　选取正反高压水及脉冲高压气的卸矿方式
，磁介质持久不梗塞；

　　利用领域：

　　合用于钾钠长石、石英砂、高岭土、霞石、萤石、蓝晶石、硅线石等非金属矿除铁提纯及渺小粒金属矿物分选
，尤其对渺小粒级非金属矿提纯成效优良。该设备与SLon立环脉动高梯度强磁机结合使用
，可产出高品质非金属精矿。

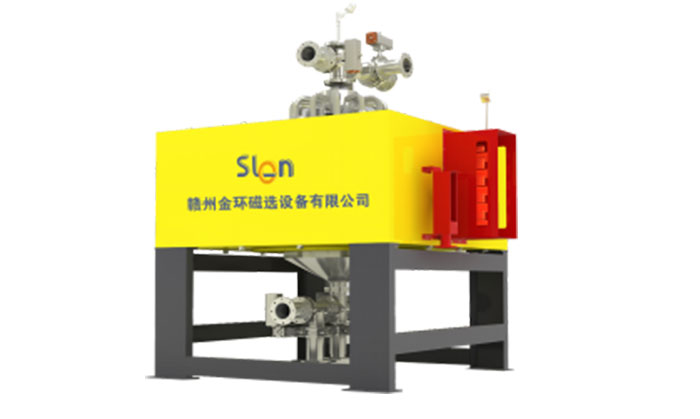

SLon High Extraction Magnetic Filtration

Scope of application

　　This is for the separation of metal minerals in fine particle size, and also for the purification of the non-metallic minerals, such as feldspar, quartz sand, kaolin, nepheline, fluorite, kyanite, sillimanite and etc., which could get the good separation effect for the non-metallic minerals in fine fraction especially.

　　Combined with the use of this equipment and our SLon vertical ring pulsating high gradient magnetic separator, it can produce non-metallic concentrates in high quality with the high added value.

Advantages

　　1. The adoption of the special magnetic matrix, it could precisely capture the magnetic minerals which could be removed completely;

　　2. The background magnetic field is with continuously adjustable which could reach 1.8T in maximum;

　　3. Equipped with PLC full automatic control system, no need disassemble and wash;

　　4. The matrix is without clogging by the discharge method of the combination usage of high pressure water flushing in both clockwise and anticlockwise way, along with the pulsating high pressure air cleaning.
